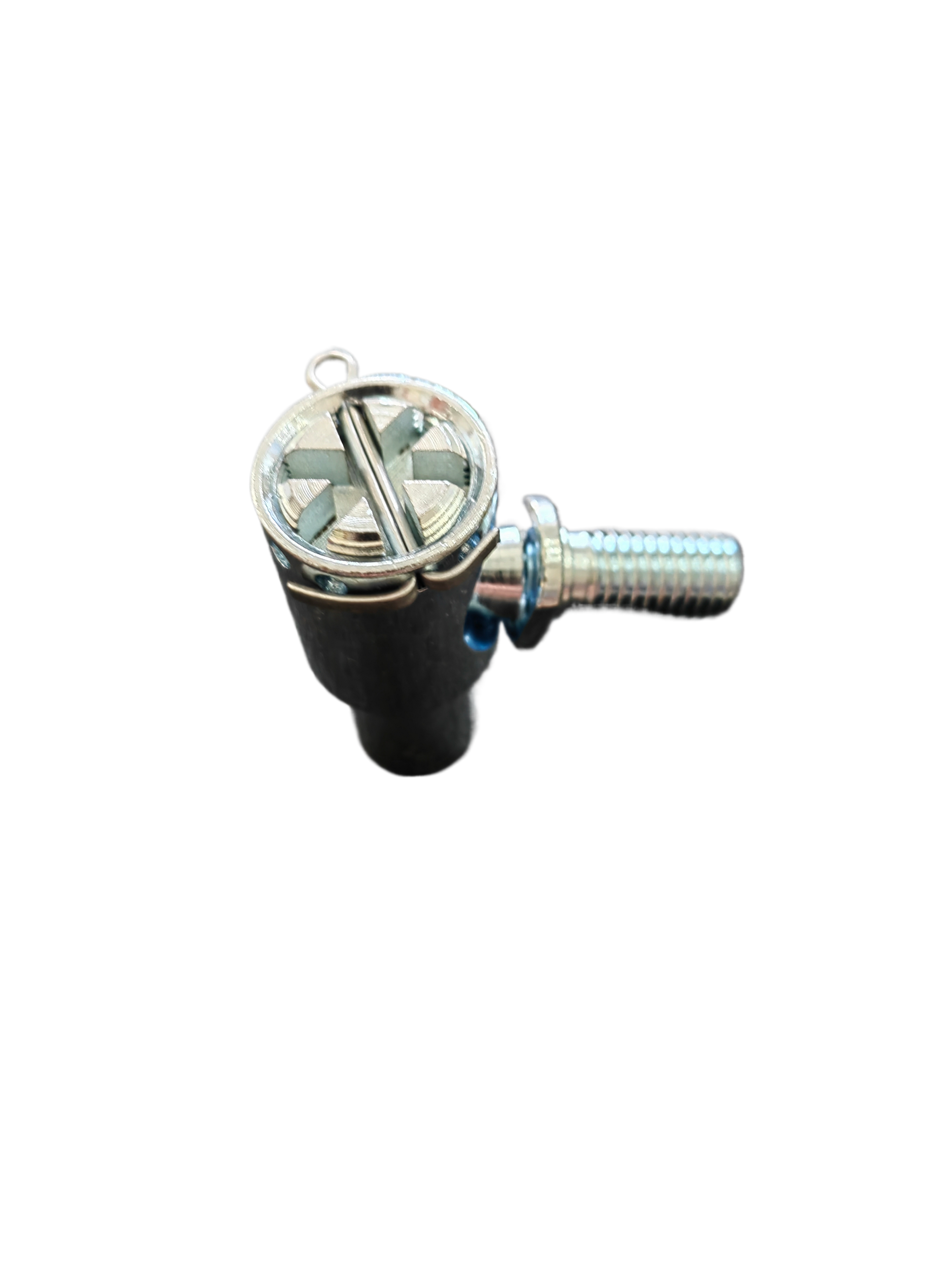

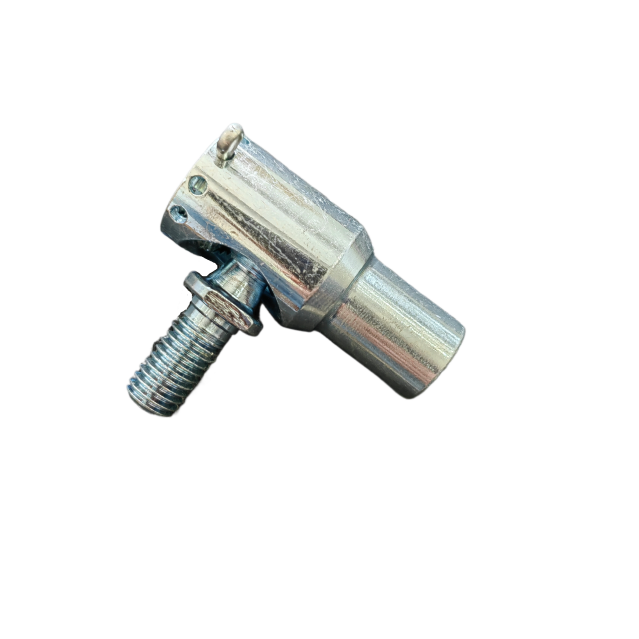

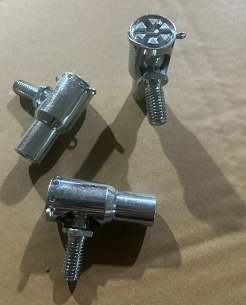

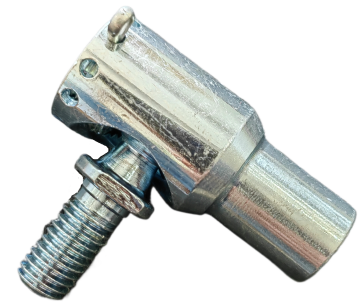

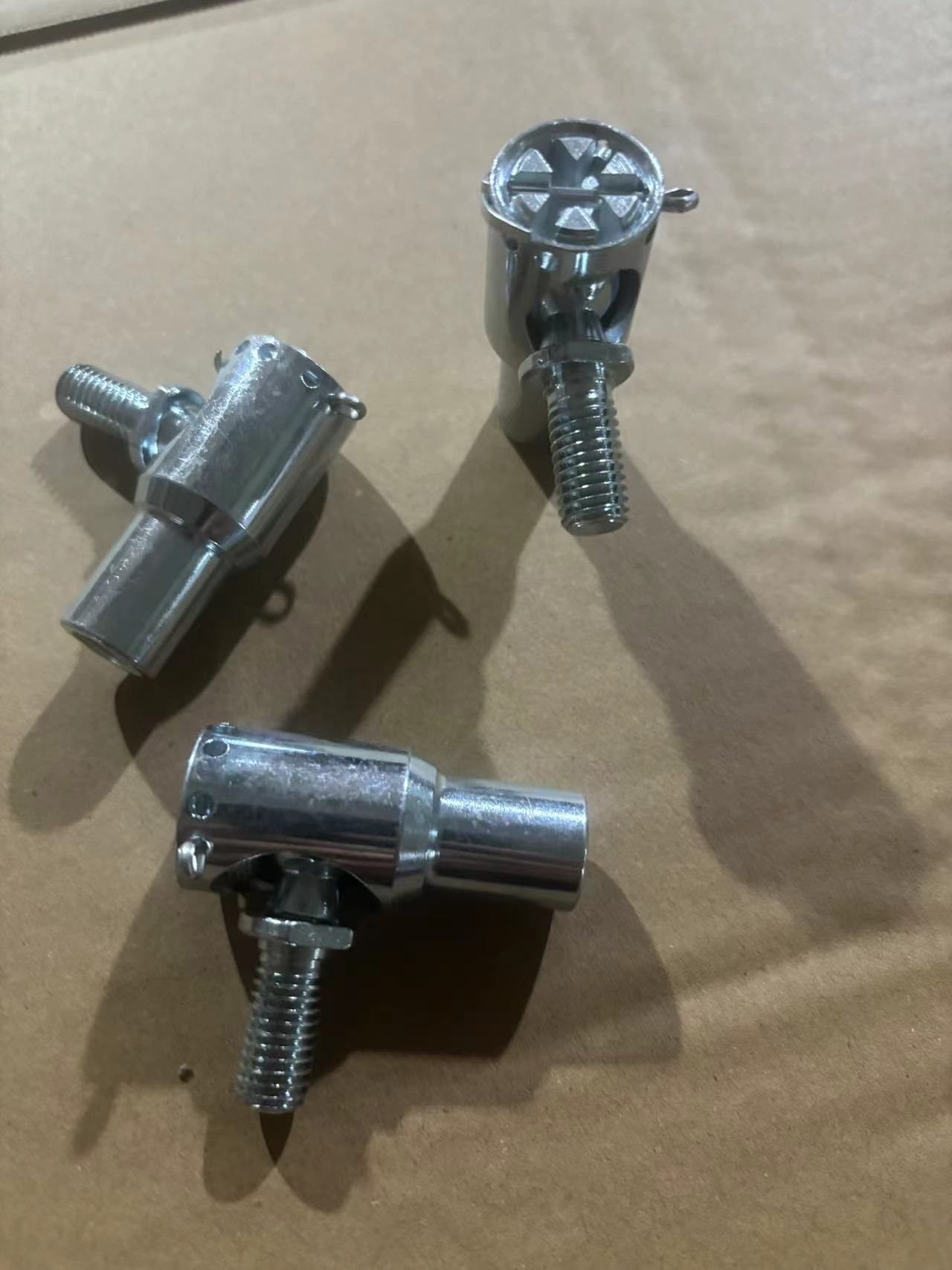

C16m10, Form C-Din71801
Wuerd
niedriger Kohlenstoffstahl

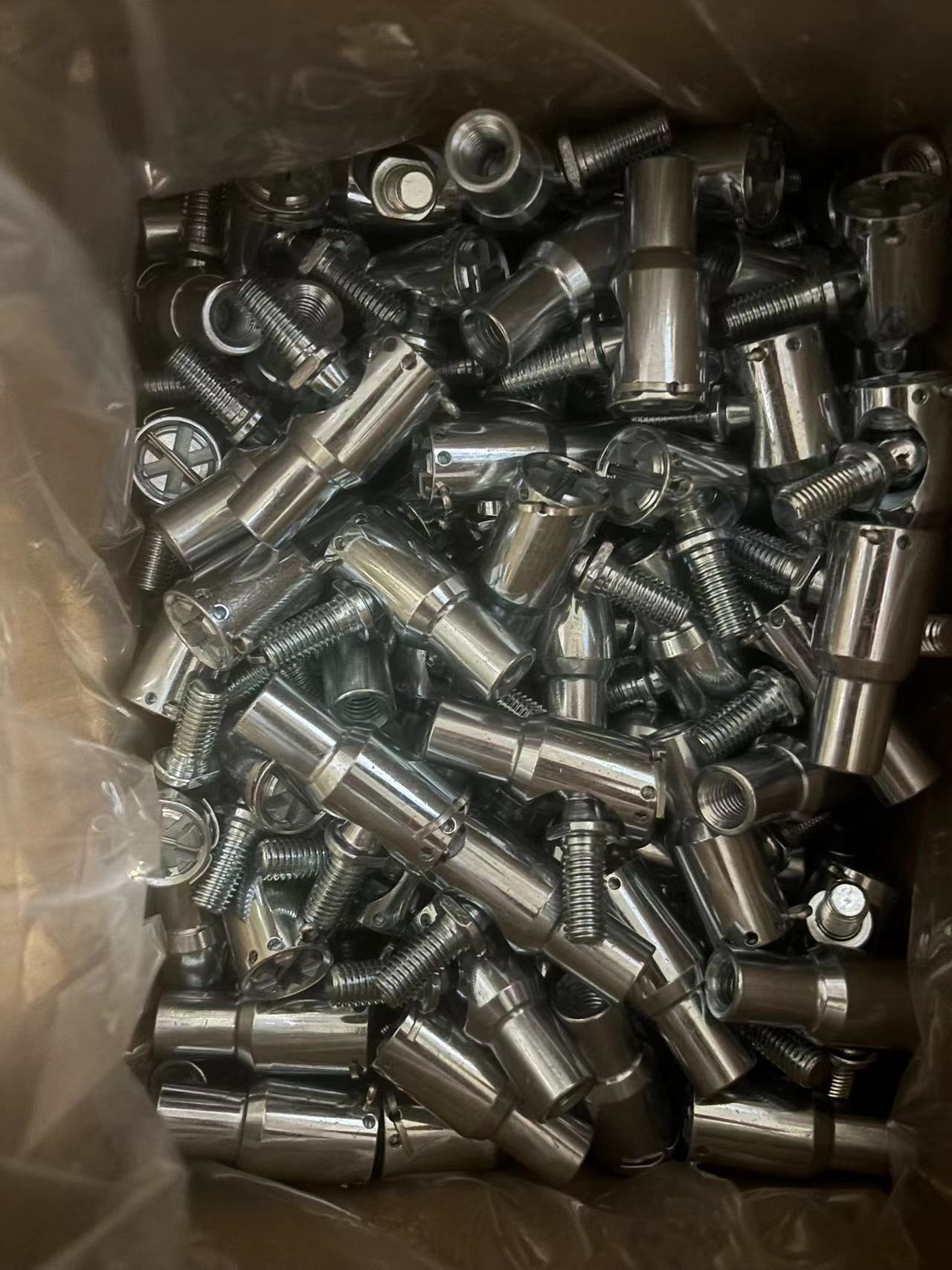

Standardpaket
Spezialpaket ist verfügbar
Kartonstahl
passiviert in Zinkweißblau, Zink/Schwarz, Zink/Gelb
Edelstahl 304 oder 316
Kohlenstoffstahl 1045
Federstahl
Verfügbarkeitsstatus: | |
---|---|
Menge: | |

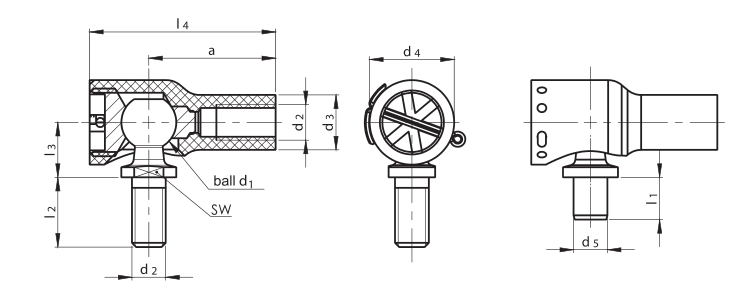

Artikel | D1 | D2 | L1 | a | D3 | D4 | D5 H11 | L2 ± 0,3 | L3 ± 0,3 | L4 | SW H14 | Gewicht (g) (Form c) |
DIN71801-C16M10 | 16 | M10 | 35 | 16 | 22 | 10 | 20 | 16 | 52 | 13 | 123 |
* D1: Balldurchmesser
Form C: mit Gewindestift
Form A: mit Nietstift
Material:
Kugellockeln: Stahlkugel Stud: Stahl
* Alternative: • Edelstahl 304 oder 316
Oberfläche: Zinkweißblau

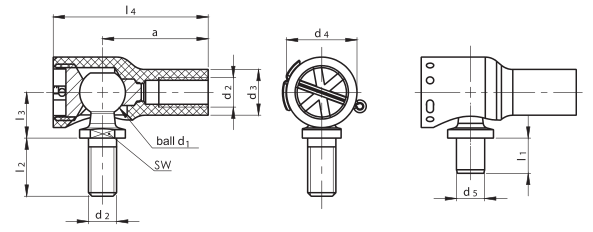

Artikel | D1 | D2 | L1 | a | D3 | D4 | D5 H11 | L2 ± 0,3 | L3 ± 0,3 | L4 | SW H14 | Gewicht (g) (Form c) |
DIN71801-C16M10 | 16 | M10 | 35 | 16 | 22 | 10 | 20 | 16 | 52 | 13 | 123 |
* D1: Balldurchmesser
Form C: mit Gewindestift
Form A: mit Nietstift
Material:
Kugellockeln: Stahlkugel Stud: Stahl
* Alternative: • Edelstahl 304 oder 316
Oberfläche: Zinkweißblau
