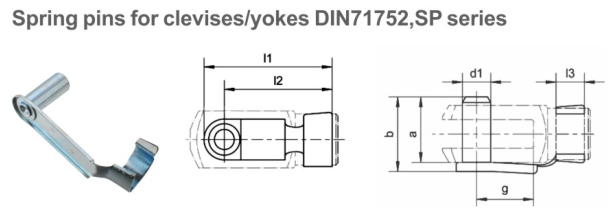

Federklappbolzen für Gabelköpfe DIN 71752

Artikel

fit for

clevis

d1 h11

g

a

b

l1 ≈

l2 ≈

l3 ≈

Gewicht (kg/100pc)

SP4x8

SP4x8

4

8

9.5

11

19

15

4.5

0.145

SP5x10

G5x10

5

10

12

13.5

23

19

5.5

0.254

SP5x20

G5x20

5

20

12

13.5

33

29

5.5

0.31

SP6x12

G6x12

6

12

14

16

28

23

6.5

0.458

SP6x24

G6x24

6

24

14

16

40

35

6.5

0.516

SP8x16

G8x16

8

16

19

21.5

37

30

8

1.059

SP8x32

G8x32

8

32

19

21.5

52

46

8

1.155

SP10x20

G10x20

10

20

23

26

46

38

10

1.938

SP10x40

G10x40

10

40

23

26

66

58

10

2.046

SP12x24

G12x24

12

24

28

31

53

45

12

3.306

SP12x48

G12x48

12

48

28

31

78

69

12

3.5

SP14x28

G14x28

14

28

31

34

62

52

14

4.722

SP14x56

G14x56

14

56

31

34

92

82

14

5.076

SP16x32

G16x32

16

32

36

39

73

62

16

6.94

SP16x64

G16x64

16

64

36

39

103

92

16

7.44

SP20x40

G20x40

20

40

45

50

87.5

71.5

16

13
